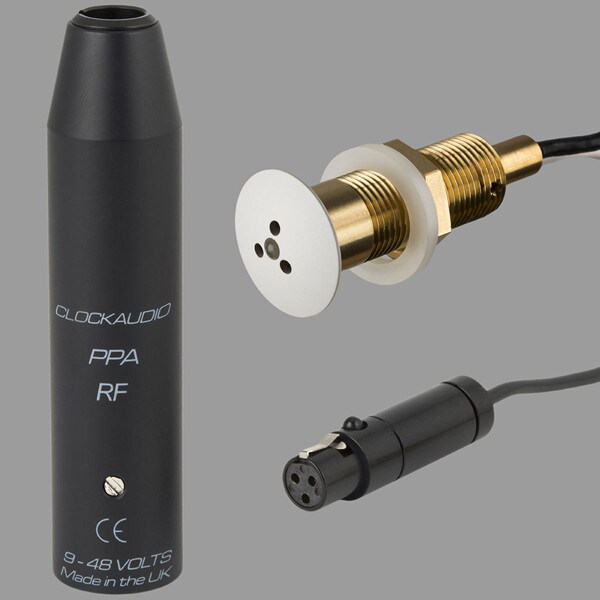

Ceiling mountable omnidirectional Mic with Bi-Color LED, In line RF PPA with XLR termination. White

Through desk/ceiling/panel mount Boundary Layer design with an Omni-Directional Polar Pattern and Bi-Colour LED..

  • Boundary Layer Condenser microphone.
  • RF friendily technology offering immunity from GSM (cellphones) and other sources of frequency interference.
  • Omni-Directional.
  • High quality brass construction.
  • Ease of mounting.
  • PPA-RF Phantom Power Adaptor supplied.
  • Low visibility when mounted.
  • Bi-Colour LED.
  • Finish: Matt Black, White or Nickel.
  • Also available in Nextel Suede Coating finishes (Custom Orders Only)
Length35mm (1.38").
ApplicationDesigned for surveillance in sensitive areas - banks, airports, railway stations, law courts, conference and convention centres. Bi-Colour LED's give visual indication of when Microphone is live.
TypeCondenser (back electret)
Polar PatternOmni-Directional.
Frequency Response50 Hz - 18 KHz.
Sensitivity-37.5dB +/- 3dB at 1 KHz (OdB = 1 V/Pa).
Impedance200 Ohms.
S/N Ratio68dB(A).
Maximum Sound Pressure Level120db at 1KHz 1% T.H.D.
Power Requirements9 - 48 volts Phantom Power.
Termination(PPA-RF) TA3F Mini Female XLR
FinishMatt Black, White or Nickel.
DimensionsL 35mm (1'.38") x W 20mm (0'.79").
Architects and engineer specificationsThe Condenser Microphone is a through desk/ceiling/panel mount Boundary Layer design with an Omni-Directional Polar Pattern. A Red/Green Bi-Colour LED is mounted on top of the Microphone and includes associated wiring for use with an external switching unit. The Microphone is made of a brass construction and is Pre-Wired with 39”(1 metre) of cable with a TA3F mini Female XLR audio termination as well as 2 bare wire leads and a shield/ground for the Bi-Colour LED. The Microphone includes a separate Phantom Power Adaptor which accepts 9 to 48 volts DC. The Phantom Power Adaptor includes filters which will eliminate all cellular frequencies (GSM/2G, 3G, 4G & 5G) and terminated with XLR connector. Frequency response 50 Hz to 18 KHz; Impedance 200 Ohms; Sensitivity -37.5dB +/- 3dB @ 1Khz (0dB =1V/Pa); Total Harmonic Distortion (THD) at an operating level of 120dB is no greater than 1%. Finish: Matt Black, White or Nickel.
