Controller for ARM Mics. (1)ARM-Controller will support (4) ARM Mics
Digital four channel motor Control Box for use with the ARM series of motorized through desk Boundary microphones.
- Powered by an external 12VDC switched mode Power Supply.
- Patent pending no. 1109720.1

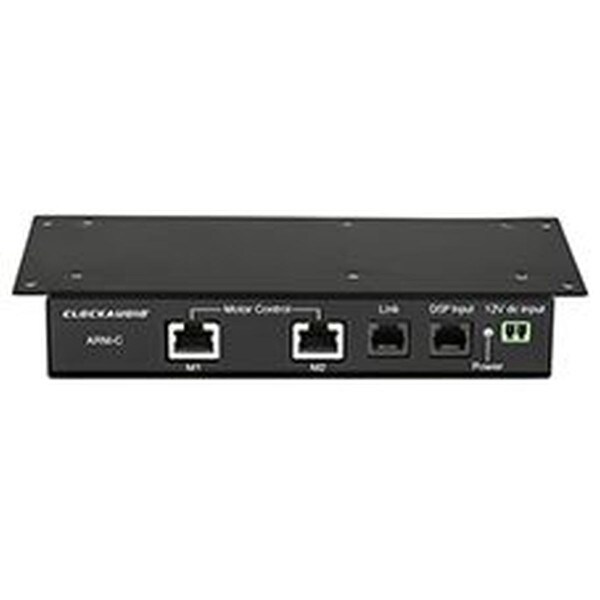

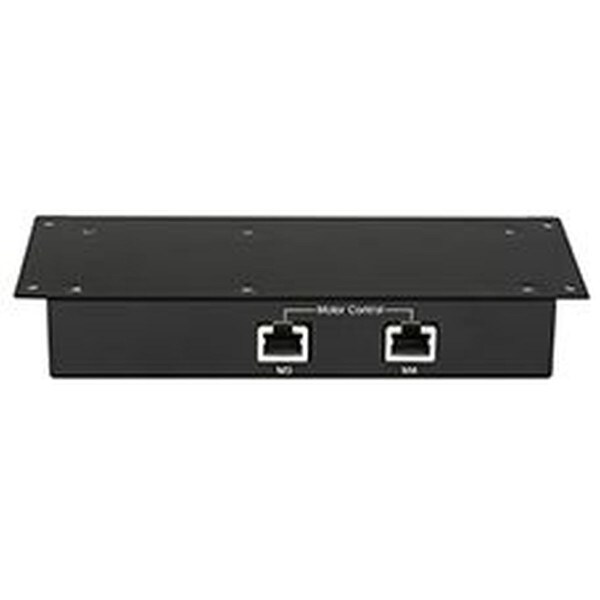

A digital four channel motor control box for use with the ARM series of motorized through desk Boundary microphones. A single logic command +2.5 to +12V from a DSP or Electronic Switching Box connected to the RJ12 logic input port will simultaneously raise / lower all ARM microphones that are plugged into the 4 x M1-M4 RJ45 motor control ports. No setting up is required as all microphones and controller boxes are preset / calibrated at the factory. Requires ARM-PSU 4 external 12VDC switched mode power supply capable of operating up to 4 ARM-C Control Boxes. DC connections to the box are via a 2 terminal removable Phoenix connector. Made from strong sheet steel construction. Blue LED power indicator. Ports: 2 x RJ12 for DSP and Linking to another ARM-C control box. 4 x RJ45 M1-M4 motor control ports for 4 x ARM microphones.
