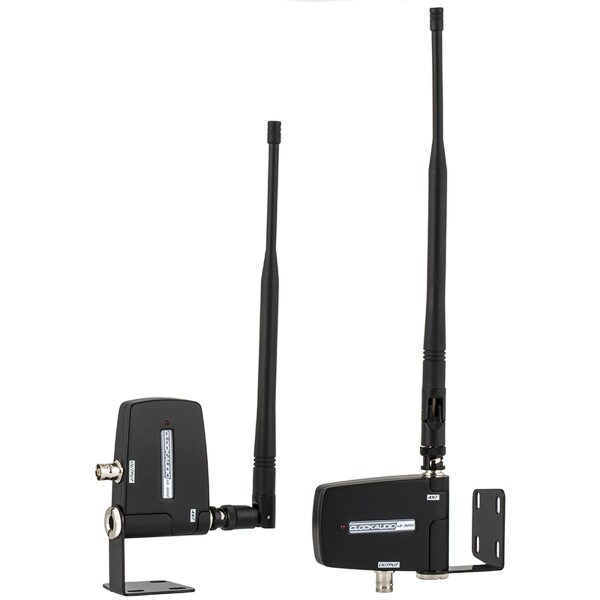

AB9000

Wireless System Antenna Booster

470 – 870MHz UHF antenna booster.

• Durable ABS case and detachable helically wound rubber duck antenna.
• RF input is via standard 50 Ohm BNC connector.
• Omni-Directional coverage with 1.8dB gain.
• Operation voltage 12-18VDC.
• Inline antenna voltage
• 12V DC 120mA is supplied by the original receiver.
• Supplied in pairs.
• Fixing bracket supplied.
• Finish: Black.
• 470 – 870MHz UHF receiver booster. Durable ABS case and detachable helically wound rubber duck antenna, supplied in pairs. RF input is via standard 50 Ohm BNC connector. Omni-Directional coverage with 1.8dB gain. Operation Voltage 12-18VDC inline antenna Voltage 12V DC 120mA is supplied by the original receiver. Antenna Gain 1.8 dBi Booster Gain: 0dB +2/-1. Antenna Coverage: 360 degrees Fixing bracket supplied. Dimensions: Unit W77mm (3”) Height 65mm (2.5”) Antenna: Length 250mm (9.8”) Weight: 166g. Finish: Black.
